Selecting the right PCB architecture is a foundational decision in electronic product development, directly influencing circuit performance, physical footprint, manufacturing costs, signal fidelity, and future scalability. While single-layer boards offer a cost-effective solution for basic functions, the routing flexibility and electrical performance of multi-layer PCBs are indispensable for advanced systems.
For OEMs and engineering leadership, the decision is rarely binary. It hinges on a critical evaluation of application complexity, performance targets, and total cost of ownership. This guide delineates the core differences between single-layer and multi-layer PCBs examining structural nuances, performance trade-offs, and cost implications to provide a clear framework for optimizing design decisions prior to layout finalization..

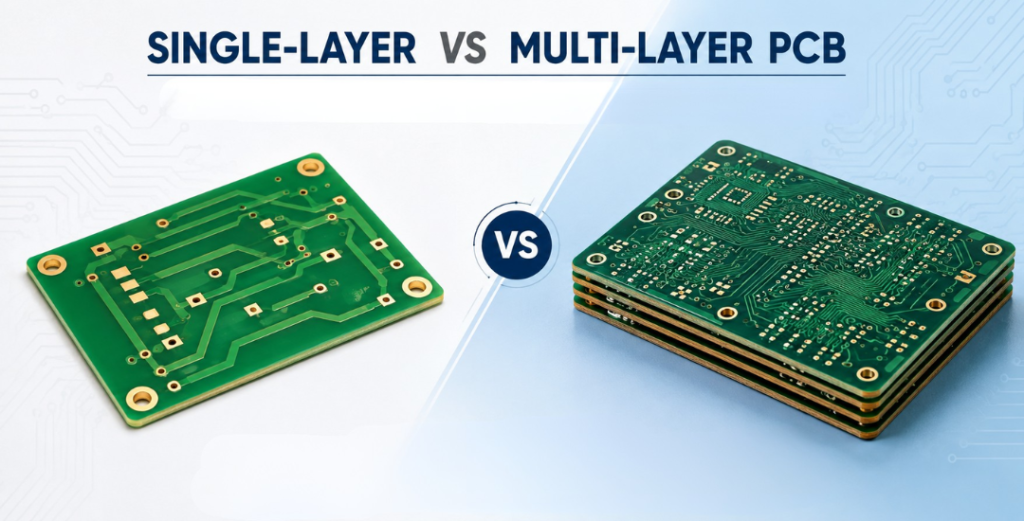

Understanding the Basics: Single-layer PCB vs Multilayer PCB
Establishing a foundational understanding is the first step towards making the right decision.
What is a Single-Layer PCB?
A single-layer PCB, or single-sided PCB, has one conductive copper layer on an insulating substrate. All traces and pads exist on one surface. This architectural constraint prohibits trace crossing without using jumper wires or resistors, limiting its application to low-complexity circuits with short, non-critical signal paths. The primary advantages include cost-effectiveness, ease of visual inspection, and straightforward rework ability
What is a Multi-Layer PCB?
A multi-layer PCB consists of three or more copper layers bonded using core and prepreg materials. Internal layers enable hidden routing paths and functional separation within the board.
Key advantages include:
- Dedicated power and ground planes
- Distributed signal routing across layers
- Controlled impedance support
Multi-layer PCBs are widely used in telecom, automotive, and medical systems where density and performance requirements are higher.

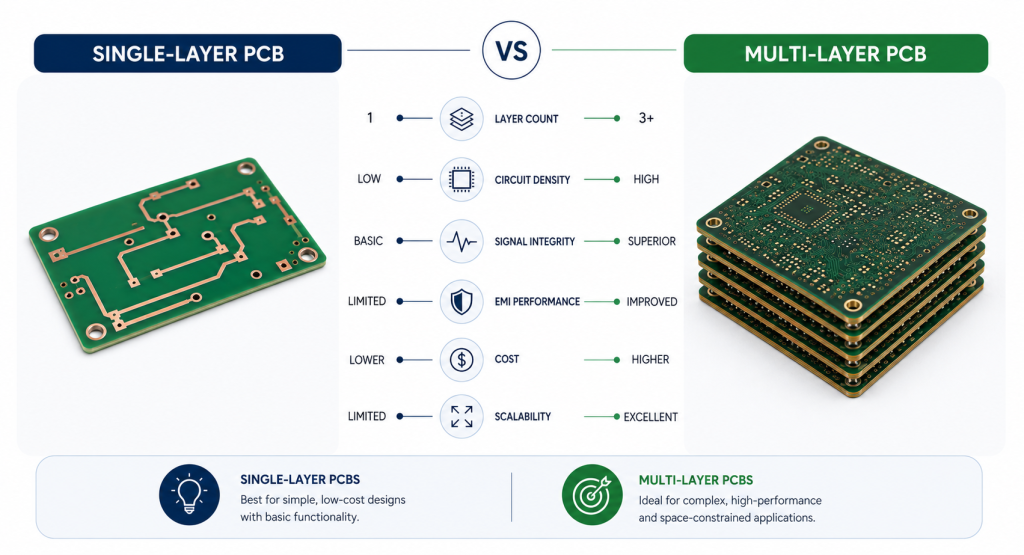

Single-layer PCB vs Multi-layer PCB: Quick Comparison
Key structural, performance, and manufacturing differences between single-layer and multilayer PCBs.
| Feature | Single-Layer PCB | Multi-Layer PCB |
| Layer Count | 1 | 3+; can extend beyond 12 or even 20 as required |
| Circuit Density | Low to medium | High |
| Design Complexity | Simple | Advanced; requires stack-up planning |
| Board Size | Larger footprint | Compact |
| Signal Integrity | Basic; susceptible to noise | Superior; controlled impedance and reduced crosstalk |
| EMI Performance | Limited shielding capacity | Improved; via internal power/ground planes |
| Manufacturing Cost | Lower initial investment | Higher fabrication cost; requires advanced processes |
| Scalability | Limited to fixed functionality | Excellent |
| Typical Applications | Basic Electronics | Servers, networking, automotive, medical Imaging, storage |
| Via Types | Simple through-hole connections | Blind vias, which connect outer layers to inner layers; Buried vias, which connect inner layers to each other without appearing on the board surface |
| Routing Strategy | All traces on the same single surface | Traces spread across multiple surfaces, separated by function, frequency, or sensitivity |
| Board Thickness | Thin and relatively simple to fabricate | Relatively thick depending on the number of layers; requires multiple lamination cycles and tighter process control |
Construction Differences: Engineering and Manufacturability Considerations
Understanding PCB construction helps engineers evaluate routing limits, electrical behavior, and manufacturability early in the design phase.
- Basic Construction of a Single-layer PCB: A single-layer PCB uses a simple stack-up. It consists of a FR-4 substrate for mechanical support, one copper layer for all circuit routing, a solder mask for protection, and a silkscreen layer for component marking. This simple structure minimizes fabrication steps and defect risk. However, the one-sided routing severely restricts layout flexibility; crosstalk control and thermal management are addressed solely through trace spacing and copper weight. .
- Structure of a Multi-layer PCB: A multi-layer PCB is built using multiple alternating copper and insulating layers. A core laminate with copper clad on both sides forms the base. Additional layers are added using prepreg material, which bonds layers under heat and pressure. Copper layers serve different roles: the outer layers handle components and routing, while inner layers are typically used for ground planes, power distribution, and dense signal routing. Layer interconnection is achieved using vias. Although this construction increases manufacturing complexity requiring precise alignment, sequential lamination, and stringent process control, it significantly improves routing flexibility, electrical performance, and signal integrity. Multilayer PCBs offer better electrical performance due to dedicated ground and power planes that provide stable return paths and improve voltage distribution. Layers separated by ground planes reduce cross talk and hence improve signal integrity. Multilayer designs have additional copper layers that help spread heat more evenly across the board and improve thermal performance.
Which PCB Type is Right for Your Design?
The right choice depends on your technical, mechanical, and cost requirements.
Choose a Single-Layer PCB When:
- Your design does not demand more than what one layer can deliver.
- The circuit is simple and component count is low.
- Signal frequencies are relatively low and EMI is not a concern.
- The product is cost sensitive and required in high volumes.
- Physical board space is not a limiting constraint.
- Easy field repair and inspection are priorities.
Typical Applications: LED controllers, basic consumer appliances, power supply boards, and simple industrial timers are some applications. Adding layers to these designs would increase cost without improving performance.
Choose a Multi-Layer PCB When:
- Performance requirements push beyond what a single conductive layer can support.
- Board space is limited and component density is high.
- High-speed signals are required with controlled impedance and noise isolation.
- The design includes mixed analog and digital circuits that need separation.
- EMI control is a regulatory or functional requirement.
- The product will need to scale in functionality across future versions.
Some application areas include medical electronics, automotive systems, networking hardware, and industrial automation.
Decision Matrix for Engineers and Product Designers
The higher the component density and signal speed, the greater the need for additional layers. While the number of layers may vary with specific requirements of each application, this is a general guideline.
| Application Type | Recommended Layer Count | PCB Type |
| LED lighting, remote controls | 1 | Single-layer |
| Power supplies, basic timers | 1-2 | Single-layer |
| Industrial sensors, mid-range IoT | 2-4 | Multilayer |
| Medical diagnostics, automotive ECUs | 4-8 | Multilayer |
| Servers, networking equipment, 5G | 8-16+ | Multilayer |
Cost Comparison: Looking Beyond Manufacturing Price
Cost is often the first filter in PCB selection; however, the full picture goes beyond the fabrication quote. Layer count, design constraints, and system-level impact all influence the real cost of a design.
- Single-layer PCB Cost Drivers: Single-layer PCB pricing is mainly driven by substrate material, copper weight, surface finish, and production volume. Standard FR-4 boards with HASL finish and high-volume production typically offer the lowest cost per unit. The simpler process flow, fewer lamination steps, and reduced inspection requirements help keep fabrication fast and economical.
- Multilayer PCB Cost Drivers: Multilayer PCB cost increases as layer count grows. Each additional layer introduces more lamination cycles, alignment steps, and copper processing. Advanced structures such as blind and buried vias further increase manufacturing time due to sequential lamination requirements. Controlled impedance designs also add cost because they require tighter process control, additional testing, and stricter yield management. Higher layer counts generally demand more advanced drilling systems and inspection systems.
Although multilayer PCBs cost more to fabricate, they can reduce overall product costs by enabling smaller enclosures, fewer EMI-mitigation components, and improved reliability.
Need Help Choosing the Right PCB Architecture for Your Next Project?
Selecting the right PCB architecture early can improve performance, simplify manufacturing, and reduce costly redesigns.
HT Global Circuits partners with OEMs and engineering teams to identify the most suitable PCB construction based on application requirements, performance goals, and budget. From design evaluation and material selection to prototype builds and production-ready manufacturing, the team helps streamline development while supporting quality, reliability, and long-term product success. Contact us today to discuss your project or request a quote.
Frequently Asked Questions
Yes, but careful layout separation is needed since a single layer offers limited isolation between analog and digital sections. Since a single layer provides minimal isolation between sections, careful spacing and component placement are mandatory to mitigate interference.
No, signal integrity improvements are a function of proper stack-up design and strategic routing, not merely adding layers. A poorly designed 8-layer board can exhibit worse performance than a well-designed 4-layer board.
Not directly; The physical routing constraints differ fundamentally. While the schematic remains intact, the PCB layout requires a complete re-engineering effort to leverage the additional layers effectively.
