In today’s competitive electronics landscape, development velocity is a primary business metric. For engineering leaders and supply chain strategists, the ability to compress PCB fabrication lead times directly correlates with faster design validation, reduced time-to-market, and improved ROI. However, traditional manufacturing cycles – often spanning several weeks – create bottlenecks that stall testing, delay engineering change orders (ECOs), and postpone revenue generation.

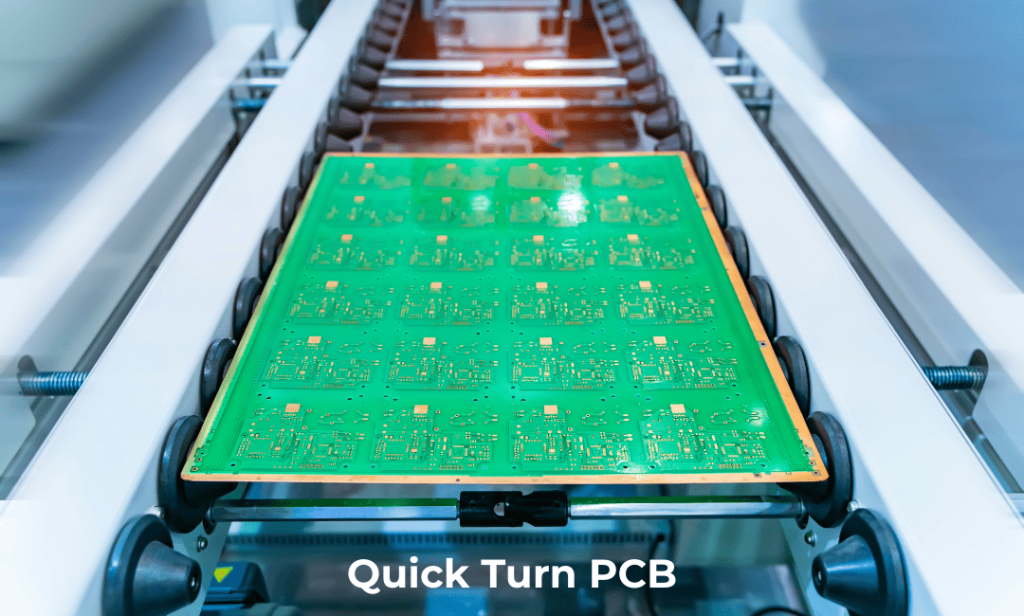

A quick turn PCB is a printed circuit board manufactured using accelerated production processes to significantly reduce fabrication and delivery times, often within 24 to 72 hours, depending on the design complexity and manufacturing requirements. These PCBs enable engineering teams to quickly evaluate prototypes, implement design changes, and move products through development with minimal delays. This post explains quick turn PCB manufacturing process, benefits, and applications.

When Do You Need Quick Turn PCB Fabrication?

Recognizing the triggers for expedited fabrication allows teams to proactively mitigate project risks and avoid expensive schedule slippage.

Consider quick-turn services in the following scenarios::

• Prototype Design Verification: First-article boards are critical for validating electrical functionality, signal integrity, thermal performance, and mechanical fit. Quick-turn services enable engineering to identify and rectify issues before committing to costly production tooling. .
• Engineering Change Orders (ECOs): Design modifications are common during product development. Changes involving component placement, routing optimization, impedance control, or layer stack-up adjustments may require updated boards within a short timeframe. Quick turn fabrication helps minimize delays associated with design revisions.
• Low-volume Pilot Runs: Pilot runs, proof-of-concept builds, and customer evaluation units typically require limited quantities of PCBs. Quick turn manufacturing supports low-volume production while maintaining fabrication quality and process consistency.
• Regulatory and Environmental Qualification: Products undergoing FCC, CE, or UL certification require multiple board variants for EMC, thermal, and reliability testing. Accelerated lead times help maintain strict qualification schedules.
• Product Qualification Testing: Electronics manufacturers often require boards for environmental testing, regulatory certification, electromagnetic compatibility (EMC) validation, and reliability assessment. Accelerated fabrication helps maintain qualification schedules.
• Urgent Replacement Boards: Industrial equipment, communication systems, medical devices, and embedded electronics may require replacement PCBs to restore system functionality. Quick turn services reduce downtime by shortening fabrication lead times.
• Research and Development Projects: R&D environments typically involve multiple design iterations. Faster PCB availability allows engineers to evaluate design improvements and proceed to subsequent development stages more efficiently.

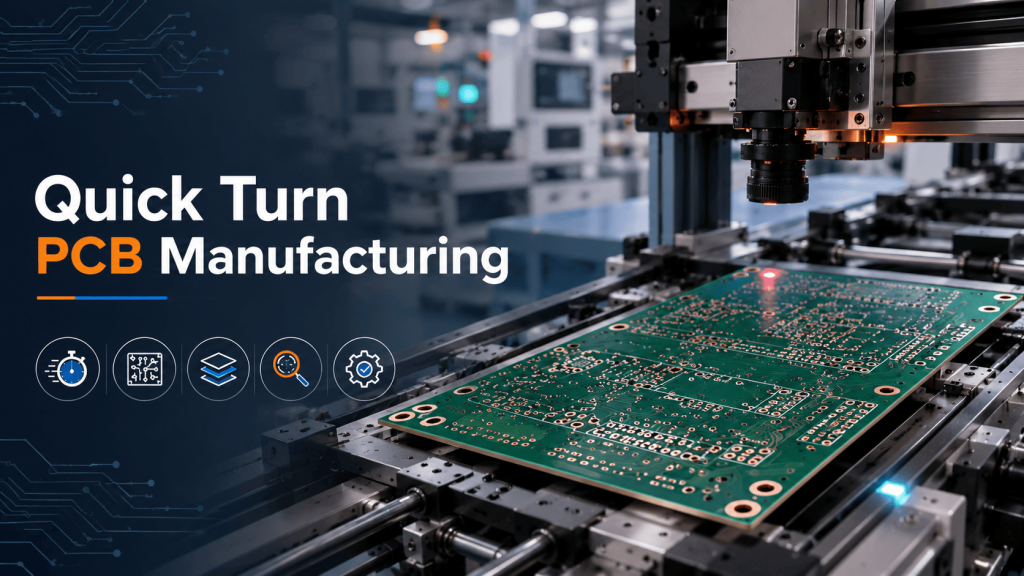

Quick Turn PCB Manufacturing Process

The quick turn PCB manufacturing process follows the same core fabrication principles as standard PCB production, with optimized scheduling, accelerated engineering review, and efficient material planning to reduce turnaround time.

Here are the key steps:

1. Design Data Submission: The process begins with submission of manufacturing files, including Gerber data, drill files, fabrication drawings, stack-up details, and material specifications. Complete and accurate documentation helps minimize delays during production initiation.
2. Accelerated Engineering Review and DFM Analysis: A Design for Manufacturability (DFM) review validates key parameters such as trace width, spacing, annular rings, drill tolerances, copper balance, and impedance control. Early detection of issues is critical in the quick turn PCB manufacturing process to avoid rework and schedule impact.
3. Strategic Material Allocation: Required laminates, prepregs, copper foils, solder mask, and surface finish materials are allocated based on design requirements. Efficient inventory systems help reduce procurement lead times.
4. Inner Layer Imaging and Etching (Multilayer): For multilayer boards, inner layers are imaged and etched to define circuit patterns. Precision imaging ensures dimensional accuracy and signal integrity.
5. Lamination and Bonding: PCB layers are bonded under controlled heat and pressure to achieve proper layer registration and structural stability.
6. Drilling and Hole Preparation: Mechanical or laser drilling creates vias, through-holes, and mounting holes as per design specifications. Hole quality directly impacts electrical and assembly performance.
7. Electroless and Electrolytic Copper Plating: Electroless and electrolytic plating form conductive interconnections between layers. Controlled plating thickness ensures reliability and conductivity.
8. Outer Layer Processing: Outer circuits are formed through imaging, developing, etching, and stripping with tight process control for accuracy.
9. Solder Mask and Surface Finish Application: Solder mask is applied for insulation and protection. Surface finishes such as ENIG, HASL, Immersion Silver, or OSP are applied based on application needs.
10. Electrical Testing and Inspection: Each board undergoes AOI, flying probe, and continuity testing to detect defects. Testing remains essential in the Quick turn PCB manufacturing process despite accelerated timelines.
11. Final Quality Control and Shipment: Final inspection, dimensional checks, and packaging are completed before shipment, ensuring rapid delivery without compromising quality standards.

Benefits of Quick Turn PCBs

Quick turn PCBs have gained immense traction due to the following benefits:

• Reduced Development Cycle Duration: The primary advantage of a quick turn PCB is faster access to functional boards. Reduced fabrication lead times support quicker design validation and shorter product development schedules.
• Faster Design Iterations: Engineering teams can implement modifications, evaluate performance improvements, and validate design changes more efficiently when prototype boards are available sooner.
• Improved Product Qualification Efficiency: Accelerated board delivery supports testing activities related to reliability, environmental performance, regulatory compliance, and certification requirements.
• Minimized Project Delays: Waiting for PCB fabrication often impacts development schedules. Quick turn manufacturing helps maintain project timelines and reduces bottlenecks associated with board availability.
• Enhanced Engineering Productivity: Faster prototype access enables engineers to focus on design optimization rather than waiting for manufacturing cycles to be completed.
• Support for Urgent Manufacturing Requirements: A Quick Turn PCB can be produced for emergency repairs, replacement assemblies, engineering evaluations, and time-sensitive customer requirements.
• Faster Cost Evaluation: Many manufacturers provide a Quick turn PCB quote within a short timeframe, allowing engineering and procurement teams to evaluate project feasibility and production requirements efficiently.

Application Areas of Quick turn PCBs

Key applications of quick turn PCBs include:

• Aerospace and Defense: Avionics platforms, communication subsystems, navigation electronics, and mission-critical control units rely on quick turn PCB fabrication for rapid prototype validation and early-stage design verification under strict performance requirements.
• Medical Device Manufacturing: Diagnostic systems, patient monitoring devices, imaging equipment, and wearable medical electronics utilize quick turn manufacturing to support iterative design validation and regulatory testing within controlled development timelines.
• Automotive Electronics: Advanced driver assistance systems (ADAS), battery management systems, power electronics modules, and vehicle control units require fast PCB turnaround to enable continuous design optimization and prototype evaluation.
• Telecommunications: RF modules, signal processing systems, networking hardware, and data transmission equipment depend on quick turn PCB fabrication to support evolving standards and rapid technology deployment cycles.
• Industrial Automation: Programmable logic controllers (PLCs), robotics systems, motion control units, and industrial sensing equipment utilize quick turn services during prototype development and system integration testing.
• Consumer Electronics: IoT devices, portable electronics, wearable systems, and smart consumer products rely on reduced PCB lead times to support fast design iterations.  A qualified quick turn PCB manufacturer helps accelerate product development and launch cycles by delivering PCBs within tight project timelines.
• Research Laboratories and Universities: Academic and research institutions avail quick turn PCB services for experimental prototypes, proof-of-concept development, and iterative testing in electronics research and innovation programs.
