Soldermask in PCB: Options, Colors & Specs

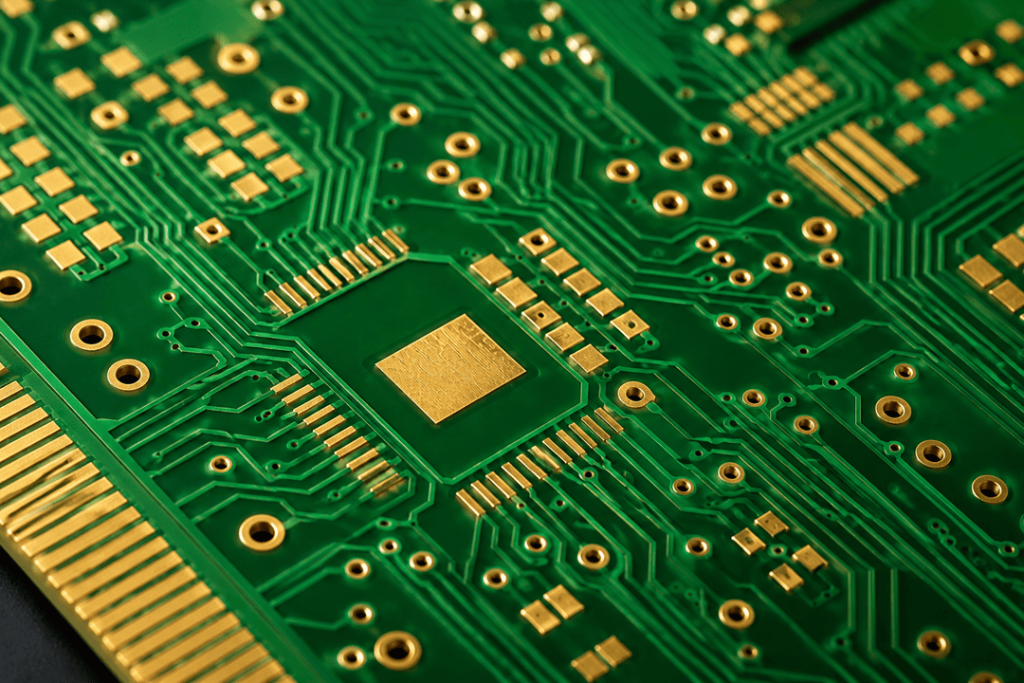

Soldermask is a thin polymer coating applied over the copper traces of a PCB, protecting against oxidation, environmental contaminants, and solder bridging during assembly. At HT Global Circuits, we combine advanced Liquid Photoimageable (LPI) and dry film soldermask technologies with precise process control to deliver consistent, high-reliability results—from prototyping to volume production. Engineers and supply chain managers rely on our capabilities for fine-pitch designs, impedance control, and certification-ready quality.
Our Manufacturing Capabilities
At HT Global Circuits, we are proud to offer cutting-edge PCB soldermask solutions combined with our state-of-the-art manufacturing capabilities. Here’s a detailed overview of our technical and unique capabilities:
| Capability | Specification |
|---|---|
|
Available Colors |
Green, Red, Blue, Yellow, White, Black, Matte Green, Matte Black, Purple |
|
Minimum Soldermask Dam |
4mil (0.10mm) |
|
Peelable Mask |
Available (0.06-0.08mm, 0.1-0.15mm) |
|
Plug Hole Capability |
0.25-0.80mm |
|
Surface Finish Compatibility |
HASL, Lead-Free HASL, Immersion Gold (ENIG), Immersion Silver, Immersion Tin, OSP |
|
Registration Tolerance |
±0.075mm (±3mil) |
|
Quality Standards |
IPC-SM-840, ISO 9001:2015, ISO 13485, ISO 14001, UL, IATF 16949, RoHS, REACH |
Significance of Soldermask in PCB Manufacturing
Soldermask’s role goes beyond protection; it also helps in improving the overall functionality and reliability of the PCB. Here’s why soldermask is essential in PCB manufacturing:
- Prevention of Short Circuits: The soldermask acts as an insulator between the copper traces, preventing accidental solder bridging, which could cause short circuits during the assembly process.
- Protection from Environmental Damage: Soldermask protects the PCB from moisture, dust, and chemicals, which could otherwise compromise the electrical components.
- Enhanced Durability: A well-applied soldermask layer increases the longevity of the PCB by shielding it from physical wear and tear, thermal stress, and environmental factors.
- Aesthetic and Branding Opportunities: Soldermask is not only functional but also contributes to the appearance of the PCB. Custom colors and finishes help brands differentiate their products and enhance their visual appeal.
Types of Soldermask in PCB Manufacturing We Offer
At HT Global Circuits, we provide a comprehensive selection of soldermask technologies to match your technical requirements and budget constraints:
1. Liquid Photoimageable (LPI) Soldermask Our most popular option, LPI soldermask offers exceptional resolution, precise registration, and superior adhesion. Applied through screen printing or curtain coating, then exposed and developed using photolithography, LPI is ideal for fine-pitch designs and high-reliability applications. Available in multiple colors and finishes, this soldermask type delivers consistent quality across both prototype and production volumes.
2. Dry Film Soldermask For applications requiring exceptional uniformity and thickness control, dry film soldermask provides an ideal solution. This pre-manufactured material is laminated onto the PCB surface, exposed, and developed, offering outstanding surface smoothness and minimal variation. It is particularly valuable for complex, impedance-controlled designs.
3. Thermal Cured / Top Coat Epoxy Mask Used primarily for specialized, non-photoimageable applications or secondary insulation, thermally cured epoxy soldermask provides strong mechanical protection and electrical isolation at a lower production cost.
Get Started Today
Ready to enhance your PCB projects with professional-grade soldermask solutions? Contact HT Global Circuits today to discuss your PCB solder mask fabrication requirements. Our engineering team is ready to provide technical guidance, answer your questions, and deliver a customized quote for your project.
Frequently Asked Questions
Soldermask is a permanent protective coating applied to the PCB surface that prevents solder from adhering to copper traces during assembly. Solder paste, conversely, is a temporary mixture of solder alloy particles and flux applied to pads specifically where electrical connections should be made
Standard Green offers the highest resolution and best visual contrast for Automated Optical Inspection (AOI). White is recommended for LED designs due to high reflectivity, while Matte Black or Matte Green finishes reduce glare during manual inspection in high-reliability applications.
When applied within IPC-SM-840 specifications and properly cured, soldermask forms a permanent bond. Cracking or peeling typically occurs only under extreme thermal shock, excessive mechanical flexing on rigid-flex boards, or improper surface preparation prior to coating
