Precision is paramount in printed circuit board fabrication. Every hole, via, and cutout must meet exact specifications to ensure proper functionality, mechanical stability, and assembly compatibility. Among the most critical and frequently misunderstood drilling operations are countersinking and counterboring. While both processes create recessed holes that accommodate fastener heads, the difference between countersink vs counterbore is fundamental to achieving the correct mechanical fit in your PCB design.
Understanding what a countersink is and what is a counterbore enables engineers to specify the correct hole geometry for their assembly requirements, preventing costly fabrication errors and ensuring proper mechanical integration. This post discusses both processes in detail, along with the specifications, applications, and critical differences between countersink and counterbore holes in PCB manufacturing.
What is a Countersink?
A countersink is a cone-shaped or tapered hole machined into a PCB surface. The conical recess allows flathead or countersunk screws to sit flush with or slightly below the board surface. The angled walls of the countersink match the taper of the fastener head, typically at 82°, 90°, or 100° angles depending on the screw specification.
The primary purpose of countersinking is to create a smooth, flat surface after fastener installation. This is particularly important in applications where protruding screw heads would interfere with stacking boards, enclosure fit, or component clearance.
In PCB assemblies, countersunk holes enable clean, low-profile mechanical attachment without sacrificing board real estate or creating obstruction points. Proper countersink fabrication requires precise documentation. Manufacturers need the following specifications to produce accurate countersunk holes.
- Drill Angle: This is the angle of the cone-shaped hole. Common angles include 90° and 120°, but this depends on the screw head’s shape.
- Major Diameter: This is the diameter of the largest part of the countersink.
- Depth: This is the depth to which the hole is drilled to accommodate the screw head.
- Board Side (Top/Bottom): This specifies which side of the board the countersink is drilled on.
- Shaft Diameter: This is the diameter of the shaft of the screw or bolt.
- Plated vs Non-Plated Holes: Whether the hole is plated with a conductive material, which can impact electrical performance.
What is a Counterbore?
A counterbore is a flat-bottomed cylindrical recess machined into a PCB surface. Unlike the tapered profile of a countersink, counterbore holes feature vertical walls and a flat base, creating a cylindrical pocket that accommodates socket head cap screws, button head screws, or bolt heads with parallel-sided shanks beneath the head.
The purpose of counterboring is to recess fastener heads below the board surface while providing a flat shoulder for the fastener to seat against. This geometry is ideal for fasteners with cylindrical heads rather than tapered ones. No angle specification is required for counterboring since the walls are perpendicular to the board surface and the bottom is flat. Counterbore fabrication requires precise dimensional control. The essential specifications include:
- Major Diameter: This is the diameter of the counterbore at the top of the hole.
- Bore Depth: This is the depth of the flat-bottomed portion of the hole.
- Board Side (Top/Bottom): This specifies which side of the PCB the counterbore is located on.
- Shaft Diameter: This is the diameter of the shaft of the screw or bolt that will fit into the counterbore.
- Plated vs Non-Plated Holes: Depending on what you choose, plated and non-plated holes affect the electrical and mechanical properties.

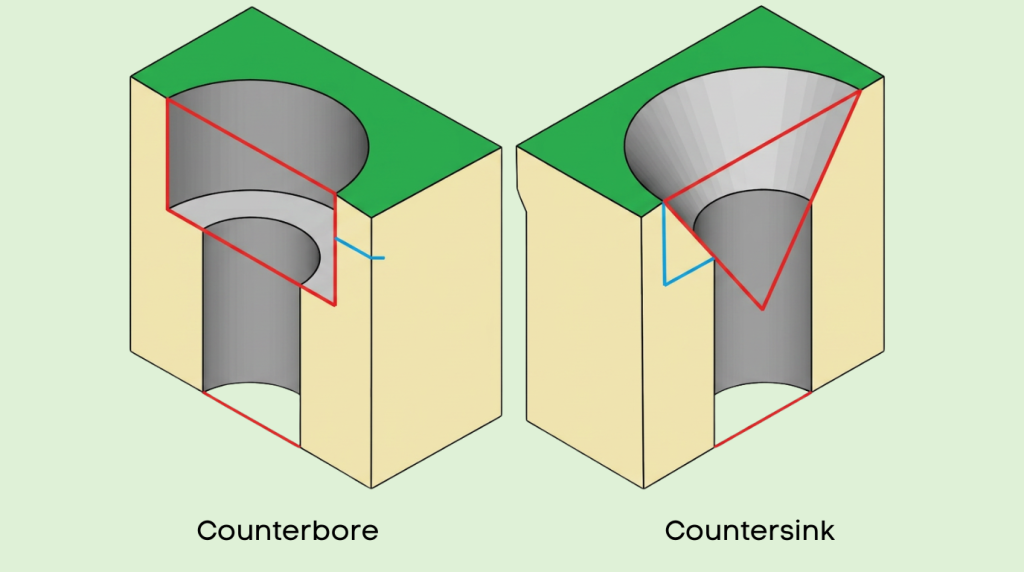

Countersink vs. Counterbore: Key Differences Explained
When comparing countersink and counterbore, the key differences are immediately evident in terms of their shape, purpose, and application in PCB manufacturing.
| Aspect | Countersink | Counterbore |
| Shape | Cone-shaped hole | Flat-bottomed cylindrical hole |
| Purpose | Allows tapered screw heads to sit flush with the surface | Accommodation flat-head fasteners like bolts or cap screws |
| Angle Requirements | Requires a specific angle (typically 90° or 120°) for the tapered hole | No angle required; has a flat bottom |
| Common Applications | Used for screws with tapered heads that need to sit flush with the surface | Used for bolts, cap screws, or washers that need to sit below the surface |
| Impact on PCB Design and Fabrication | Requires precise control of drill angle and depth for flush screw fitting | Requires accurate depth and diameter for proper fastener fitting |
Countersinking and Counterboring in PCB Fabrication
Precision drilling is critical in PCB fabrication. Both countersinking and counterboring require tight tolerance control to ensure that the holes are accurately formed, preventing issues with fastener fitting or the overall structural integrity of the PCB. Over-drilling is a risk, and it can lead to holes that are too large, impacting the overall quality and strength of the PCB.
In addition, maintaining the plating integrity in both hole types is essential. Plating over these holes is often required for electrical conductivity, and any mistakes in drilling or plating can affect the electrical performance of the final product.
Common Mistakes to Avoid
Several recurring errors can compromise the quality of countersunk and counterbored holes in PCB fabrication.
- Missing Angle Specification for Countersinks: Ensure the correct drill angle is specified to accommodate the desired fasteners.
- Incorrect Depth Values: Both countersinks and counterbores require precise depth values. Over-drilling or under-drilling can cause fasteners to fit incorrectly.
- Plating Miscommunication: Ensure clear communication regarding the need for plated or non-plated holes to avoid inconsistencies in the manufacturing process.
- Incorrect Hole Type Selection: Make sure to choose the correct hole between countersink and counterbore based on the fastener requirements and design needs.
Understanding the difference between countersink vs counterbore is essential for precise PCB fabrication and successful mechanical assembly.
