PCB Stackup Engineering: The Foundation of Signal and Power Integrity
The Foundation of Signal and Power Integrity
The PCB layer stackup is the first and most critical decision in your board’s life cycle. It irrevocably defines your budget for signal integrity, power integrity, EMC, and thermal performance. A suboptimal stackup imposes permanent performance limits that no component selection or routing genius can later overcome.
At HT Global Circuits, we treat stackup design not as a preliminary step, but as the core of our engineering partnership. We collaborate with you to model and build a custom stackup that not only meets your requirements but actively enables your design’s success. Our proven manufacturing processes and rigorous quality control ensure compliance with the stringent standards of the aerospace, automotive, telecommunications, and medical device industries.
Overview of PCB Layer Stackup

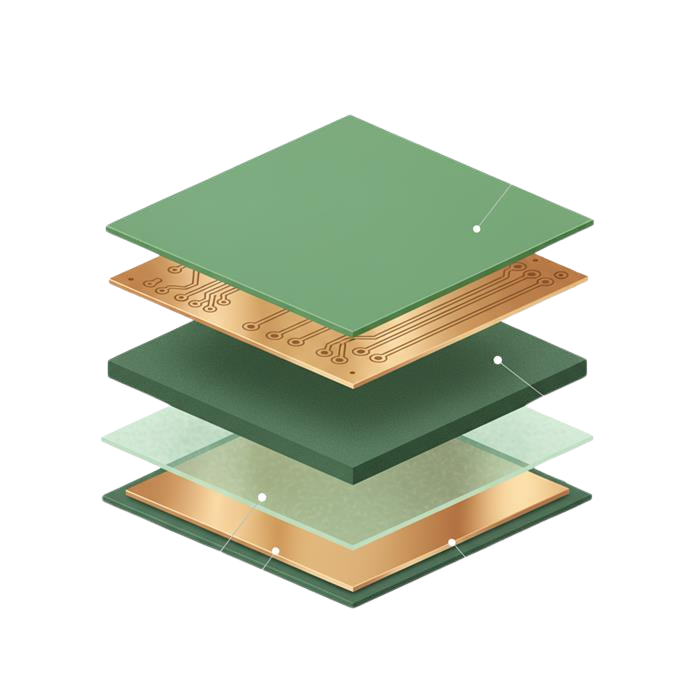

A PCB layer Stackup represents the sequential arrangement of conductive copper layers, dielectric materials, and protective coatings that form the complete circuit board structure. This engineered configuration determines critical electrical parameters including characteristic impedance, signal propagation delay, crosstalk levels, and power delivery efficiency.
The stackup design process involves careful selection of substrate materials, copper weights, and layer thicknesses to achieve specific performance targets while maintaining manufacturing feasibility. Modern high-speed PCB Stackup designs incorporate controlled impedance routing, differential pair configurations, and dedicated power planes to support gigahertz-frequency operations.
Our Capabilities
This partnership is built on a masterful command of the variables that define stackup performance. We don’t offer standard templates; we engineer optimized solutions:
| Capability | Our Approach & Impact |
|---|---|
|
Material Selection & Hybridization |
We are agnostic to material vendors. We model the performance of FR4, Mid-Loss (IS410, IT958), and Low-Loss (Megtron, Tachyon) laminates, often creating hybrid stackups that place expensive, low-loss materials only where needed for critical nets, thereby optimizing both cost and performance. |
|
Impedance Modeling & Field Solving |
We don’t rely on simple calculators. We use field solvers to model impedance for your specific cross-section, accounting for etch factor and glass weave style, to guarantee ±5% tolerance even on challenging broadside-coupled stripline. |
|
High-Density Interconnect (HDI) Strategy |
We architect stackups for any-layer microvias, staggered or stacked via structures, and via-in-pad. We model the impact of via stubs on signal integrity for high-speed interfaces and optimize the layer sequence to minimize them. |
|
Power Delivery Network (PDN) Optimization |
We design for low impedance from DC to GHz. This includes specifying thin dielectrics for power-ground plane pairs to create inherent decoupling, and advising on layer adjacency to minimize via inductance for your BGA’s power rails. |
|
Mixed-Signal & RF Isolation |
We engineer isolation through the strategic use of ground planes, split power planes with optimized return paths, and dedicated signal layers for sensitive analog or RF circuits, thereby preventing digital noise contamination. |
|
Rigid-Flex & Flex Expertise |
We design stackups that manage the transition from rigid to flex, ensuring mechanical reliability and maintaining impedance control throughout the bend area. We specify adhesiveless flex cores for improved performance and reliability. |
|
Thermal & Mechanical Symmetry |
We create balanced, symmetrical stackups to prevent warpage during assembly and in the field, and integrate thermal management layers (copper coins, thick power planes) directly into the stackup design. |
Process of PCB Stackup Design
Effective PCB stackup design involves careful planning and execution, integrating material properties with electrical requirements.
- Requirements Analysis and Specification Development: Project evaluation reviews electrical, mechanical, and environmental needs. These inputs define stackup parameters that guide the overall design.
- Material Selection and Characterization: Dielectric properties, thermal stability, and reliability drive material choice. Proper evaluation ensures long-term performance of the PCB under different operating conditions.
- Impedance Modeling and Simulation: We utilize Ansys HFSS or Polar SI9000, providing you with a report that includes impedance predictions for your approval, guaranteeing performance before a single layer is etched
- Layer Arrangement Optimization: Signal, power, and ground layers are strategically organized to minimize noise. This arrangement improves crosstalk control and power delivery efficiency.
- Design Rule Validation and Manufacturing Review: Design checks confirm compliance with production limits and tolerances. Early reviews reduce errors and improve final yield.
- Prototype Validation and Testing: We don’t just build the board. We provide TDR (Time Domain Reflectometry) plots from our lab, correlating simulation with physical measurement on your prototype to validate stackup performance before production.
Mastering Stackup Design: Key Insights and Best Practices
A precise PCB stackup design ensures electrical consistency and reduces risks during manufacturing. HT Global Circuits highlights critical aspects that help customers achieve high performance.
- EMI Reduction and Signal Integrity: Proper layer placement and ground plane alignment reduces interference and maintains clean signals. This minimizes crosstalk and ensures stable reference planes for high-frequency designs.
- Impedance Control and Matching: Controlled dielectric thickness and copper weights enable accurate impedance values. This improves signal termination and reliability in high-speed protocols like DDR, PCIe, and USB.
- Power Distribution Network Optimization: Strategic power plane placement minimizes voltage drops and delivery impedance. It also supports efficient decoupling and reduces noise in sensitive circuits.
- Thermal Management Integration: Copper distribution and thermal vias help dissipate heat evenly. This prevents hot spots and maintains component reliability in demanding applications.
- Manufacturing Cost Control: Balanced stackups streamline material usage and manufacturing processes. Standardized layer combinations improve yields while keeping production costs lower.
- Regulatory Compliance Assurance: Engineered stackups support EMC compliance and safety standards. Proper grounding and shielding shorten certification timelines for global markets.
Effective Tips for Layer Stackup in PCB
A successful PCB layer stackup demands precision, foresight, and adherence to industry best practices. Below are some of the tips that enable customers to achieve consistent electrical performance, high manufacturability, and lower production risks.
- Ground Planes Are Non-Negotiable: We advocate for uninterrupted ground planes adjacent to every critical signal layer. This isn’t just for return paths; it’s your primary shield against EMI and the key to controlling impedance.
- Prioritize Signal Integrity: Always place critical signal layers next to ground planes to minimize impedance mismatch and enhance transmission reliability.
- Symmetry is Stability: We enforce balanced, symmetrical stackups around the centerline. This is a non-negotiable rule for preventing warp and twist during assembly, which is critical for large BGAs and fine-pitch components.
- Select Proper Materials: Utilize dielectric materials optimized for frequency, temperature, and application requirements, ensuring reliability in high-speed PCB stackup scenarios.
- Account for Manufacturing Tolerances: Design with realistic copper thickness and dielectric spacing values to achieve accurate impedance-controlled stackup results.
Frequently Asked Questions
Yes, we engineer stackups that comply with aerospace-grade reliability standards, focusing on high temperature tolerance, vibration resistance, and secure impedance performance required in mission-critical systems.
Flex stackups use polyimide cores and coverlays to allow bending and dynamic applications, while rigid-flex combines rigid FR-4 regions with flexible layers for hybrid reliability. Both require unique design approaches that HT Global Circuits supports.
Yes, our engineering team provides stackup solutions that integrate heat-spreading copper planes and dielectric materials with low thermal resistance, ensuring better cooling for high-power applications.
Yes, we offer prototype stackup validation, where sample builds are tested for impedance, EMI performance, and manufacturability to ensure designs are production-ready.
Yes, we deliver custom PCB stackup guides with validated layer structures, ensuring faster design cycles and consistency across production batches.
The ROI is measured in risk reduction and saves time. A suboptimal stackup often leads to a board respin, costing tens of thousands of dollars and 4-8 weeks of lost time. Our upfront engineering partnership virtually eliminates this risk. By optimizing manufacturability and performance from the start, we prevent costly delays, improve system reliability, and ultimately get your higher-quality product to market faster.
