Eliminate Multilayer Failures: Precision Inner Layer Fabrication
Multilayer PCBs rely on precisely engineered inner layers to ensure electrical performance, signal integrity, and overall board reliability. The quality and accuracy of PCB inner layers directly impact multilayer stack up stability, impedance control, and thermal management in complex electronic assemblies. At HT Global Circuits, we specialize in inner layer PCB manufacturing that delivers consistent layer registration, minimal defects, and high-quality dielectric properties for advanced applications. Our precision inner layer process is meticulously designed to eliminate the primary risks in multilayer builds—misregistration, impedance drift, and thermal delamination—ensuring your most complex designs achieve flawless signal integrity, relentless reliability, and successful first-pass assembly.
Our expertise spans from standard multilayer designs to high-density interconnect (HDI) boards, supporting industries where reliability and precision are critical. We offer end-to-end fabrication services optimized for aerospace, automotive, medical, and high-performance electronics.
Our Advanced PCB Inner Layer Capabilities
At HT Global Circuits, we combine cutting-edge technology with industry-leading processes to offer high-performance inner layer PCBs. Our extensive PCB inner layer capabilities ensure precision, reliability, and customization to meet the most demanding design and application requirements.
| Capabilities | Description |
|---|---|
|
PCB Types |
We manufacture rigid, flex, rigid-flex, HDI, and heavy-copper multilayer PCBs with precise inner layer construction for applications in aerospace, automotive, telecom, and industrial electronics. |
|
Layering & Complexity |
Inner layer stack ups up to 108 layers, including blind, buried, and microvias, optimized for high-density interconnects, signal integrity, and compact multilayer designs. |
|
Ultra-Fine Features |
Fine line capability down to 0.05mm (2 mil), laser-drilled microvias, via-in-pad, and controlled impedance inner layers for high-performance circuits. |
|
High-Performance Materials |
FR4, polyimide, Rogers, and advanced laminates with superior dielectric stability and thermal properties, engineered for multilayer reliability. |
|
Inner Layer Copper Thickness |
Inner layers range from 0.3 oz to 28 oz, with UL-compliant thickness options up to 12 oz for enhanced current handling and heat dissipation. |
|
Impedance Control |
We maintain precise impedance tolerance of ±5% for signal integrity and high-frequency applications. |
|
Hole Plating |
We offer thick hole wall plating from 12–45 µm (0.4–1.8 mil) for both PTH and NPTH holes, ensuring strong connections and reliability. |
|
Blind/Buried Vias |
Available in a variety of configurations (e.g., 1+n+1, 2+n+2, up to 5+n+5), enabling compact designs and optimal routing. |
|
Specialized Builds |
Support for semi-flex inner layers, embedded copper features, and high-density multilayer inner layer PCBs for advanced electronics applications. |
|
Minimum Drill Hole Size |
Capable of laser drilling as small as 0.05mm (2mil) and CNC drilling down to 0.10mm (4mil) for intricate designs. |
Inner Layer PCB Manufacturing
The process of manufacturing inner layers for PCBs involves precision at every stage to ensure optimal electrical and mechanical performance.
At HT Global Circuits, we follow a meticulous inner layer PCB fabrication process to guarantee high-quality results:
- Material Selection: Choose appropriate substrates based on electrical, thermal, and mechanical requirements (e.g., FR4, metal core, semi-flex).
- Lamination: The substrate is laminated with copper foil on both sides.

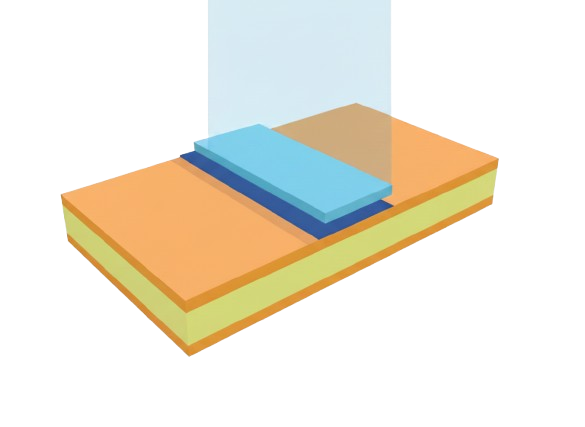

- Inner Layer Imaging: Photolithographic imaging defines the circuitry on the copper layers.
AOI & Etching: 100% Automated Optical Inspection (AOI) is performed post-etch on every single inner layer. This is our critical gate to catch opens, shorts, and neck-downs before lamination, where they become costly, irreparable failures. - Etching: Unwanted copper is etched away, leaving behind the desired circuit pattern.
Lamination & Registration: We use automated optical punch systems and X-ray targets to achieve layer-to-layer alignment tolerances that are critical for >16-layer boards. - Drilling: Precise hole drilling is performed for vias and interconnections.
- Plating: Through-hole plating is done to establish electrical conductivity across layers.
- Inspection & Testing: Each inner layer undergoes stringent testing for quality and reliability.
Frequently Asked Questions
We use advanced alignment systems and automated optical inspection (AOI) to ensure that the registration and alignment of the inner layers in multilayer PCBs meet the highest standards.
For complex designs that require blind and buried vias, HT Global Circuits employs high-precision laser drilling and advanced plating technologies. Blind vias connect outer layers to one or more inner layers, while buried vias interconnect inner layers without reaching the outer layers. This allows for a ‘build-up’ manufacturing approach, dramatically increasing routing density in a smaller area and is essential for the miniaturization demanded by modern consumer and medical devices.
Semiflex inner layers are used in flexible and rigid-flex PCB designs where certain sections of the PCB need to bend, while others remain rigid. Semiflex inner layers use specific, low-ductility copper and adhesiveless laminates in the bend zones. This engineering prevents work-hardening and micro-fracturing of traces during dynamic flexing, which is a common failure mode in poorly executed rigid-flex designs.
Yes, this is a core part of our partnership model. Our DFM (Design for Manufacturability) analysis provides a custom layer stack-up proposal, including material recommendations, controlled impedance calculations, and a strategy for via structures that optimizes for cost, reliability, and performance before you finalize your layout.
We use Optical Microsection Analysis to qualify our plating processes, ensuring we produce fully filled, void-free microvias that can withstand thermal cycling and mechanical stress far exceeding standard IPC requirements.
