Electrical Test
Electrical testing is the final yet crucial validation step in the printed circuit board (PCB) manufacturing process. This ensures that each board meets stringent electrical and functional standards by identifying potential defects, such as opens, shorts, or incorrect connections. At HT Global Circuits, we are committed to delivering PCBs that meet the highest industry standards.
Our PCB electrical testing services are designed to ensure each board is free from defects, offering reliable performance across all applications. We take a thorough and systematic approach to testing, identifying, and addressing potential issues early in the process. With a commitment to zero defects and a focus on quality, we deliver high-performing and reliable PCBs.
Types of PCB Electrical Testing at HT Global Circuits
At HT Global Circuits, we perform electrical tests for PCBs tailored to different stages of the manufacturing process. Our two primary testing approaches are listed below.

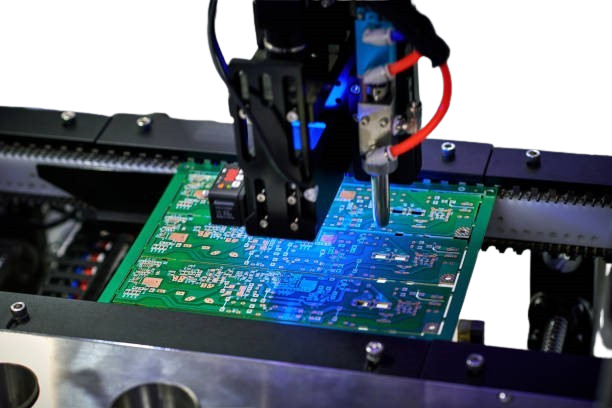

- Flying Probe Testing: This is a flexible, fixtureless method ideal for prototypes, NPI (New Product Introduction), low- to mid-volume production. By eliminating custom fixtures, it offers cost savings and rapid adaptability for frequent design changes. At HT Global Circuits, our flying probe testers offer flexible, high-accuracy testing, enabling quick design adjustments and a faster time-to-market, with minimal setup required for smaller batches.
- Bed of Nails Testing: Also known as in-circuit testing, this testing method utilizes a custom fixture with fixed pins to simultaneously contact multiple test points on the PCB. This method delivers the highest throughput and lowest per-unit test cost for high-volume manufacturing, ensuring 100% electrical validation at production scale without compromising on precision. We utilize this method to ensure precision and speed, conducting thorough electrical integrity tests across large production volumes without compromising quality.
Parameters Tested in PCB Electrical Testing
Our comprehensive PCB testing services evaluate key electrical parameters to ensure the PCB functions as intended and meets the highest standards of reliability and performance. Key parameters tested include:
- Opens: We identify any breaks in the circuit, ensuring there are no disconnected or missing electrical pathways that could lead to malfunctions or failures.
- Shorts: We detect unintended electrical connections between conductive traces, which could cause circuit malfunctions, signal interference, or complete failure of the PCB.
- Impedance: We measures the resistance to current flow within PCB traces, ensuring it is within the correct limits to maintain optimal signal integrity and overall performance.
- Isolation: We verify there are no unintended connections between different sections of the PCB, preventing crosstalk or interference that could disrupt the performance of sensitive components.
- Continuity: We confirm the integrity of the electrical paths, ensuring all traces are properly connected and functional without breaks or interruptions.
Why Our Electrical Testing Matters?
Here are key reasons why our electrical testing is crucial for ensuring the performance and reliability of the PCBs.
- Mitigating Risk with a Zero-Defect Mandate: We are committed to a zero-defect policy, ensuring every PCB that leaves our facility is thoroughly tested and verified to meet your exact specifications. Electrical testing plays a pivotal role in this process, helping identify issues that may not be visible during visual inspection, such as hidden opens or shorts. This ensures that your product operates flawlessly in its intended application, thereby reducing the risk of field failures.
- Compliance with IPC-9252: HT Global Circuits adheres to the rigorous standards set forth in IPC-9252, a critical industry certification that ensures all PCBs are tested to the highest performance and reliability criteria. Compliance with this standard reflects our commitment to maintaining the highest quality control throughout our testing processes, providing you with confidence in the reliability of every board we deliver.
- Enhanced Reliability: In aerospace, automotive, and medical device applications, every PCB must meet strict performance standards. Our electrical testing ensures that your PCBs are ready for these high-frequency environments.
- Reducing Total Cost of Ownership: The highest cost of a defect is discovered after it leaves our facility. Our upfront electrical testing is a strategic investment that prevents expensive rework, scrap, and recall costs in your assembly process, safeguarding your profitability and project timelines.
- Continuous Improvement and Innovation: At HT Global Circuits, electrical testing isn’t just about verifying functionality; it also drives our continuous improvement process. By identifying trends in failures or weak points, we refine our design and manufacturing processes, leading to even higher levels of quality in future production runs.
Certifications and Standards in PCB Testing
HT Global Circuits adheres to the highest international standards to ensure the highest quality in our electrical testing of PCBs. Our certifications affirm our commitment to maintaining industry-leading processes and delivering reliable, compliant products:
- IPC Certification: We adhere to IPC guidelines, the global standard for PCB manufacturing and assembly, ensuring that all our processes align with the most current industry standards and best practices.
- UL Recognition: Our manufacturing facility is **UL Recognized** (likely under UL 796 for base materials), ensuring the materials and construction of your PCBs meet critical safety standards.
- ISO 9001: Our ISO 9001 certification reflects our dedication to quality management systems that promote continuous improvement and customer satisfaction, ensuring every product meets rigorous quality standards.
Applications of PCB Testing Services
Our PCB testing services are crucial in mission-critical applications where precision, reliability, and safety are vital.
- Aerospace: Our electrical testing services help maintain the integrity of systems that power everything from avionics to satellites.
- Automotive Safety: Our comprehensive testing ensures the integrity of PCBs used in safety-critical automotive applications, such as airbag systems, braking systems, and advanced driver assistance systems (ADAS).
- Medical Devices: We support the production of life-saving devices, ensuring each PCB performs flawlessly in critical medical environments.
Frequently Asked Questions
HT Global Circuits offers flexible PCB testing services that can scale with your production needs. For low-volume production, we utilize flying probe testing, which eliminates the need for custom fixtures, making it ideal for prototypes and small batches. For high-volume production, we switch to In-circuit PCB Testing with custom fixtures, enabling faster, more efficient testing while maintaining the same level of accuracy and reliability.
Testing complex multi-layer PCBs requires precision and thoroughness. HT Global Circuits uses advanced electrical testing techniques to ensure that all layers are properly connected and meet the desired performance standards. Our Flying Probe Testing method is particularly effective for detecting faults in multi-layer designs, ensuring that all electrical connections across the layers are intact and functioning properly.
HT Global Circuits stays ahead of technological advancements by continuously updating our PCB testing services. We invest in the latest testing equipment, tools, and methods to ensure we can accommodate emerging technologies, such as 5G, IoT, and advanced automotive systems. This forward-thinking approach allows us to test PCBs for the latest high-speed circuits and complex systems, guaranteeing reliability and performance as technology evolves.
